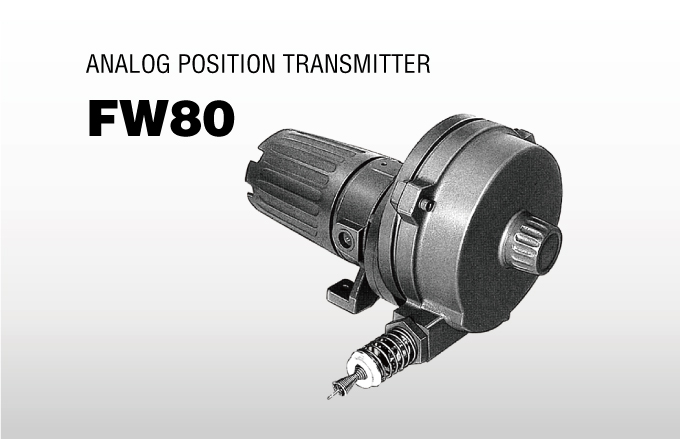

Analog Position Transmitter FW80
Overview
Wire Position Sensor
The FW80 analog position transmitter has two versions: a long-stroke type and an ultra-precision type. The position transmitter incorporates a precision potentiometer, and converts the linear motion of an object to be measured into electric resistance proportional to its position. A construction drawing of this device can be found in Fig. 8. A stainless steel wire is wound around a wire drum, which incorporates a spring. The shaft of the drum is connected to the shaft of the potentiometer via the synchro-belt pulley.

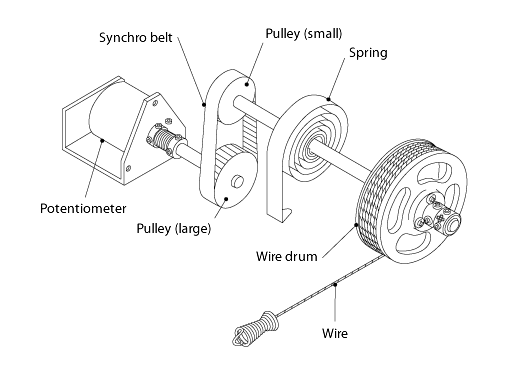

Structural diagram
A stainless steel wire is wound around a wire drum, which incorporates a spring. The shaft of the drum is connected to the shaft of the potentiometer via the synchro-belt pulley.
Specifications
| Output | 0 to 2000Ω |
|---|---|
| Response speed | 400mm/sec |
| Wire tension | 45N (4.5kgf) max. |
| Ambient temperature | -20°C to +80°C (standard) |
| Painted color | JIS7.5BG4/1.5 |
| Weight | 8.6kg |
| Detecting length | Linearity (%) | Resolution (%) | Permissible power (W) (at 60°C) |
|---|---|---|---|
| 300 | ±0.2 | Infinitesimal | 3 |
| 970 | ±0.5 | 0.0091 | 3.3 |
| 3000 | ±0.5 | 0.052 | 0.8 |
| 5000 | ±0.5 | 0.030 | 1.5 |
