MB Tension Sensor
Overview

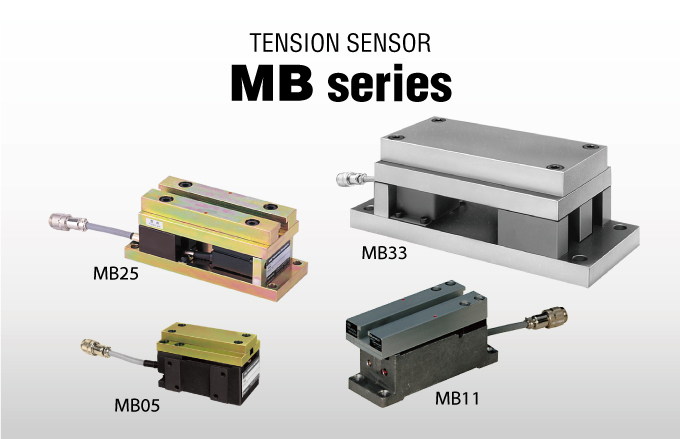

The MB Tension Sensor was designed to be used with a tension controller or tension meter. It supports a wide range of products, with any tension range. The MB Tension Sensor has long been a strong seller, since sales were launched 20 years ago.
Feature
-
Proven Track Record and Reliability

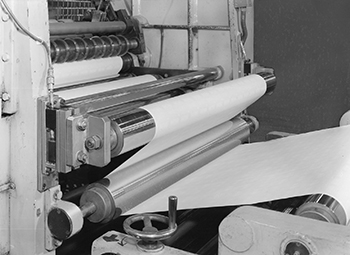

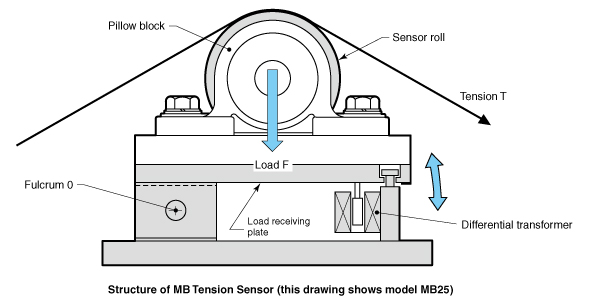

Without bearings or similar mechanical contacts, and employing a non-contact detection method using a differential transformer, the MB Tension Sensor is highly responsive with low hysteresis. The compact size also requires little space for installation.
-
Easy to Install
The MB 05, 11, and 25 can be installed at any angle.
-
Wide Selection of Sensors
- Full range available, from low tension (100 N full scale) to high tension (10,000 N full scale)
- ②All sensors have intrinsically safe construction.
-
Overload Resistant
The durable construction provides resistance to momentary overloads.
Specifications
| Model | MB05B | MB05A | MB11B | MB11A | MB25B | MB25A | MB33B | MB33A | MB41 |
|---|---|---|---|---|---|---|---|---|---|
| Rated tension (N) | (50)100 | 200 | (50)100 | 200 | 500 | 1000 | (2000) 3000 |
5000 | 10000 |
| Roll displacement (μm/N) | 2.38 | 1.19 | 2.63 | 1.30 | 0.44 | 0.22 | 0.071 | 0.045 | 0.023 |
| Allowable roll weight (kg) | 10 | 20 | 10 | 20 | 50 | 100 | 300 | 350 | 700 |
| Allowable overload (N) | Ten times rated load | ||||||||
| Unit weight (kg) | 1.5 | 0.8 | 3.4 | 16.1 | 24 | ||||
| テンション合力方向 | Forward or reverse possible | Forward or reverse possible | Forward or reverse possible | Forward or reverse possible | Forward or reverse possible | Forward or reverse possible | Forward only (reverse impossible) | Forward only (reverse impossible) | Forward only (reverse impossible) |
| Mounting angle | Any desired angle | ||||||||
| Supply voltage | DC +6V | ||||||||
| Ambient temperature | -10 to +60℃ | ||||||||
| Applicable bearings | – | ||||||||
- Figures for rated tension and allowable roll weight are for double-sided detection. For single detection the above figures should be halved.
- A 5m cable with connectors for connection to an amplifier is supplied.
- MB05, MB11 and MB25 can be wall mounted with a bracket. If the unit is equipped with a bracket, “-W” is added to the end of its model name. e.g. MB11B-W.
- Sensors with inherently intrinsic safety construction are also available. “S” is added to the end of the corresponding model name. e.g. MB11BS.
Download Tension Sensor Model Selection Software
