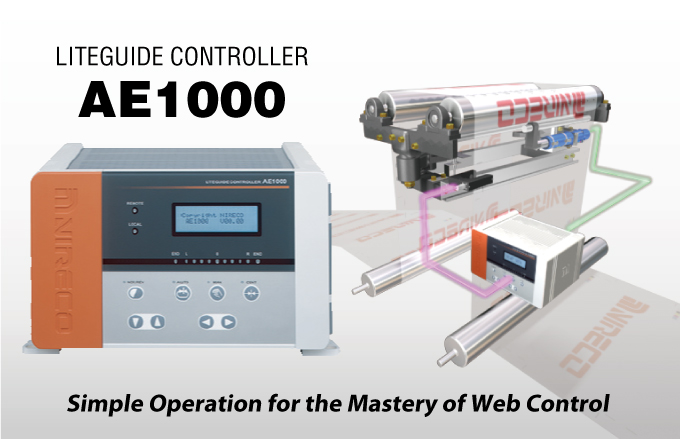

Liteguide Controller AE1000

Liteguide Controller AE1000
OverviewFeatureConfigurationSpecification Product Catalog

Overview

The Liteguide Controller AE1000 carries out EPC （Edge Position Control） through a combination of Photoheads （PH16B） and Ultrasonic Sensor （UH01）, CPC （Center Position Control） through a combination of Photoheads and Autowide Sensor （AWE280 etc.） and LFC （Line Follower Control） through a combination of LH19 and LH110.

Feature

  • Liteguide Controller AE1000 is the successor to the previously well established AE900E and AE900L controllers.
  • This single type can be connected to Nireco standard sensors which has been used with the AE900E or AE900L controller.
    （Some sensors may need to be used with a preamp）
  • Can be used directly coupled with electrical actuators K12 and K61. Can also be connected to the K80 series through use of a driver.
  • Has 2 systems, a sensor input stage and a shift input stage, which can be switched for use.
  • Uses a larger LCD display than previous models with a white backlight making it both easier to see and allowing for verification of a greater amount of information.

Configuration

Configuration

Specification

Power Supply Voltage AC100 to 240V 50/60Hz ±10%
Power Consumption 300 VA (inrush current 100 A 10 ms typical (200 V))
Power Fuse 250V AC, 3.15 A (time-lag type)
Ambient Operating
Temperature		 0 to 50°C
Ambient Operating
Humidity		 35 to 85% RH or lower (no condensation)
Vibration Resistance 3.5 mm, 1 G, 3 to 150 Hz, three-directions (1hour)
Power supply Noise 2.5 kVp-p, normal mode, common mode 50 ns, 1μs width
Usage atmosphere: Area with no water, flammable or corrosive gases, and little dust.
Mass Approximately 5 kg
IP Class IP30

Input

2 Sensor systems Voltage input Maximum ±5V（No input resistance）
Current input 0-20mA (input resistance converted to 240/2kΩ)
2 analog shift systems Voltage input Maximum ±10V
Centering Proximity switch input （0-8V, 1.2kΩ input resistance）（Applies to: KL1632. 0-90P）
Position Transmitter Voltage input Maximum ±10V
Photo coupler input
（12V DC, 15mA）		 Remote controller :
  • Operation mode switching (auto / manual / centering)
  • Operation keys (left / right / auto balance / reverse)
  • System selection (EPC1 / EPC2)
  • Locks 3 points
Actuator end limit :
  • 2 points

Output

Electrical actuator K12 ±24V DC, 1A(maximum) or K62 ±36V DC, 2A(maximum)
Lamp power source 4 to 12V DC, variable （maximum 1A）
Fine tuner,
Position transmitter,
LH8B		 ±5V power source （maximum 0.1A）
Sensors ±15V power source （+15V, 1A; -15V, 0.2A）
（Note: The current capacity on the + side combined with the lamp power source in(2) is less than 1A.）
Centering proximity
switch power source		 8V DC （maximum 30mA）
2 indicator systems Voltage output Maximum ±10V （load resistance 2kΩ or greater）
Deviation output
Position transmitter output
Photo coupler output
（24V DC, 40mA）		 Remote controller :
  • Operation mode state (auto / manual / centering)
  • System state (EPC1 / EPC2)
  • Alarms Excessive deviation
    • End limit
    • Actuator lock
    • Actuator excessive load
