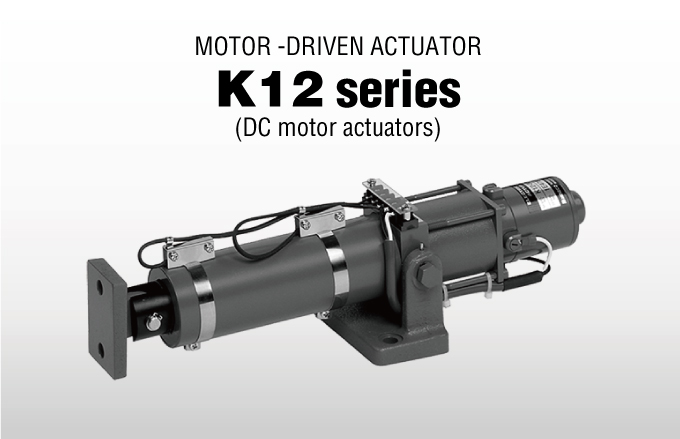

Motor-Driven Actuator K12 series
Overview
We have translatory and rotary models in the K12 series, and both types are strengthened to withstand thrust load.
In addition, they are constructed to control thrust direction as much as possible and combining the translatory motor-driven actuators with planetary gear and ball screws in a single structure provides a strong and precise actuator.

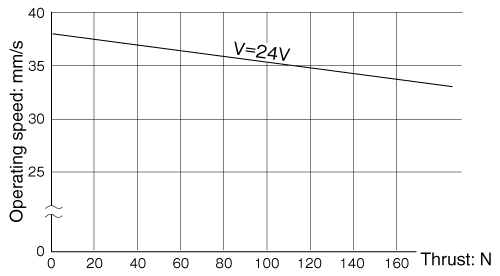

Load Characteristics
仕 様
Linear model
| Model | Thrust (N) | Stroke (mm) | Speed (mm/s) | Mass (kg) |
|---|---|---|---|---|
| K12-80-07 | 300 | 80 | 8* | 3.1 |
| K12-80-20 | 150 | 80 | 40* | 3.0 |
| K12-150-07 | 300 | 150 | 8* | 3.7 |
| K12-150-20 | 150 | 150 | 40* | 3.7 |
Rotary model
| Model | Tolque (N cm) | Rated Speed (rpm) | Gear ratio | Mass (kg) | Rated voltage (DCV) |
|---|---|---|---|---|---|
| K12-00-70 | 120 | 80* | 27.04 : 1 | 1.2 | 24 (1A) |
| K12-00-450 | 30 | 450* | 5.2 : 1 | 1.1 | 24 (1A) |
