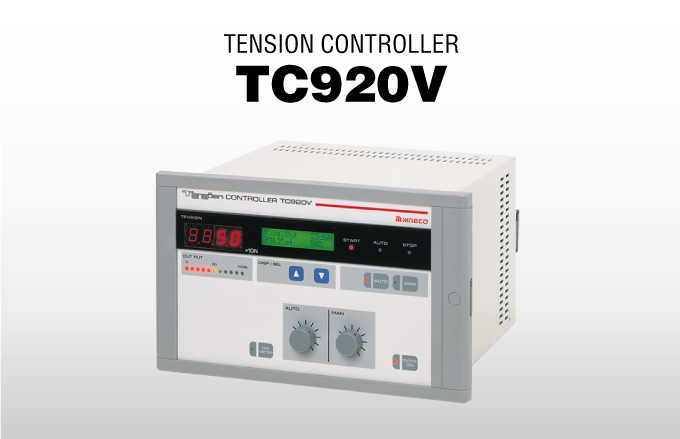

Tension Controller TC920V

Tension Controller TC920V


The TC920V Tension Controller can be used with a wide range of web manufacturing and treatment processes to automatically control the tension of a moving web to a constant value. Digital calculation allows a wider range of functions than previous products, but the controller can still be operated in the intuitive style of an analog device. This controller combines stable and precise tension control with excellent cost performance.


  • Control knobs for frequently-used operations

    Control knobs are used for tension settings and manual settings to give a familiar feel.

  • Clear display

    A four-digit LED display is used for quick and easy checking and an LCD display for more extensive information.

  • Simple zero and span adjustment on installation

    Automatic adjustment functions make adjustment a simple process. Tension control is conducted with the start contact only. The system automatically outputs pre-output on startup, and slack-prevention output on stop.

  • Excellent responsivity and stability

    Proportional and integral action are augmented by our renowned fixed loop gain calculation.

  • Connection with a wide range of tension sensors

    Can be connected to the following wide range of Nireco sensors: MB, MG, MC, CD, MJ, CJ, TSA, and intrinsically safe TSA sensors

  • Free choice of actuators

    Electromagnetic brakes and clutches, pneumatic brakes and clutches and torque motors can be used.

  • Compatible with automatic paper splicing

    The new/old spindle switching signal produces paper splicing preset output for paper splicing with little variability.

  • Diameter measurement function

    An encoder or other suitable sensor can be connected to measure roll diameter.

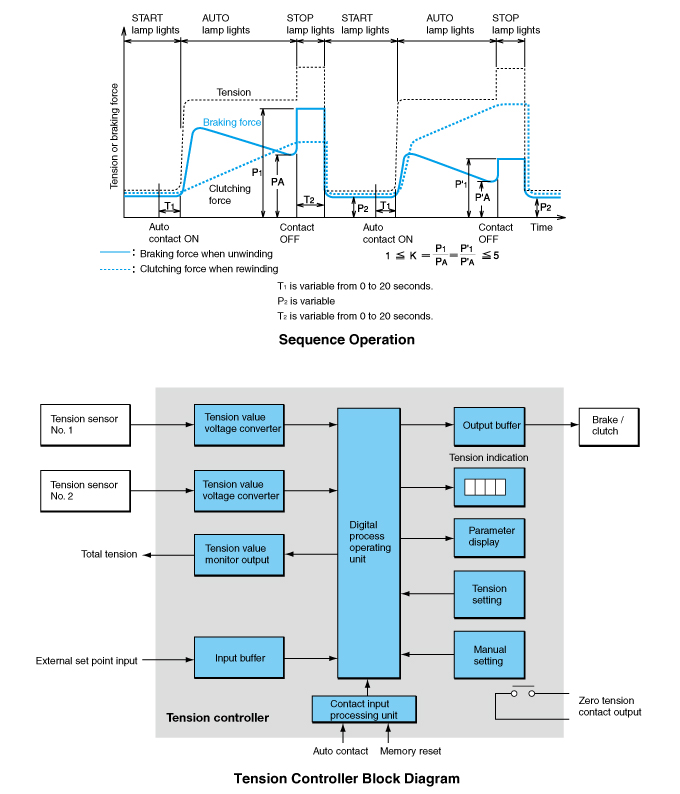

Loop Gain Correction Circuit Provides Excellent Responsiveness and Stability

  • Tension Signal Converter

    Digitally display the sum or product of the No. 1 and No. 2 tension sensor tensions.

  • Control Calculator

    A control calculator compares the tension signal from the tension display with the target tension, and reduces any variation. Additionally, the ever-popular constant loop-gain control delivers superb control stability and responsiveness, regardless of coil diameter.

  • Output Amp

    When the magnetic brake/clutch on the final control element is used, the power of the control signal is increased, and output at 0 to 24 V (4A). When the air brake/clutch is used, 4 to 20 mA is output to the electro-pneumatic converter. When a torque motor is used, a 0 to 10 V (2mA) voltage signal is output to the motor driver.



Power supply voltage 100 to 240V AC 50/60Hz
Power consumption 300VA (Entry cuurent 60Atyp (20ms))
Current capacity 1.5A (200V)
Mass 6kg
EnvironmentOperating ambient temperature 0 to +50°C
Operating ambient humidity 35 to 85%RH (no condensation)
Vibration resistance 3.5mm, 1G, 3 to 150Hz, 3 directions (for one hour)
Power source noise 2kV, normal mode, pulse width of common mode 50 nS,
1 uS (depends on the noise simulator)
Operating ambient atmosphere Place free from water droplets, inflammable gas, corrosive gas, corrosive gas, and dust
Rated tension 10~10000N
Tension sensors that can
be connected to the TC920V
MB, MG, MC, CD, MJ, CJ, TSA, and intrinsically safe TSA tension sensors.
OutputOutput for measurement Tension value voltage output (0 to 10VFS (1 mA or less))
Current output for tension value meter (0 to 1mA/FS)
External setting power supply 0 to 10V (1 mA or less), 4 to 20mA (470Ω or less)
0 to 24V (4A or less)
Power supply for external setting Power supply for external setting
Contact outputZero tension output
Minimum diameter output
Automatic control output
Number of outputs, 3
(DC30V 0.2A, AC200V 0.2A)
InputSensor input •MG tension sensor
•MB tension sensor
•MC tension sensor
•CD tension sensor
•MJ tension sensor
•CJ tension sensor
•TSA tension sensor
Analog input •External tension setting
•External manual tension setting
A number of inputs, 2 (0 to 5V, input impedance 100kΩ)
•Analog diameter
(for Taper and Start level)
•New spindle deameter (for splicer)
•External start level setting
•External taper rate
A number of inputs, 4 (0 to 10V, input impedance 100kΩ)
Contact input •Automatic
•Memory reset
•Output on
•Emergency stop, external automatic
/ manual or accelerate
•Diameter calculation reset
•Diameter calculation hold
A number of inputs, 8 (12V DC, 12mA)
Pulse generator Gate generatorDetection for speed and diameter 12V DC
